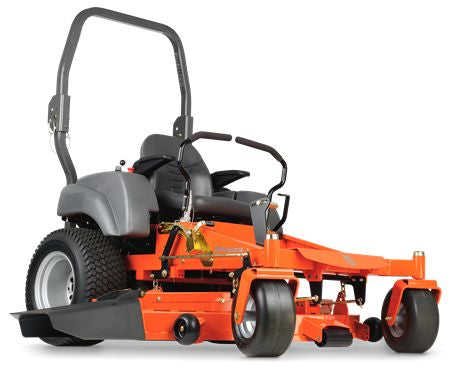

The MZ series zero-turn mower from Husqvarna takes performance, productivity, and comfort to a whole new level. The intuitive operator interface, heavy-duty steel frame and commercial rated hydraulic system create the ultimate mowing experience. With a rugged fabricated steel deck that is mulch and collection capable, the MZ is practical for all of your property maintenance needs. The high back seat with armrests and adjustable ergonomic steering levers will provide a comfortable ride time after time.
-
Motor/engine manufacturer
Kawasaki
-
FR 730V
-
24 hp
-
61 in
-
6-inch Wide Caster Wheels
Durable 6-inch wide front casters with pneumatic tires provide long life and are easy on turf.
Removable foot pan
Removable foot pan for easy access to deck belt pulleys, spindles and clean-up.
Pedal-assisted cutting deck lift
Ergonomically designed deck lifting system offers precise cutting height adjustment. Easy and quick adjustment from the operator’s seat.
Oversized chassis
2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality.
- Transmissions
- Durable cutting deck
- Cast Aluminum Deck Spindles
- Easy-access service points
- Hour meter with service minder
- Comfortable steering
- Comfort & Support
- Adjustable tracking
- Zero-turn steering systemKawasaki engine
Transmissions
Longer life due to premium integrated zero-turn transmissions featuring charge-pumps, larger drive axles and expansion tanks.
Limited warranty
Homeowner Warranty
4 years or 400 hours (whichever occurs first)
Commercial Warranty
4 years or 400 hours (whichever occurs first)
Capacity
Productivity
4.2 acres/hr
Speed forward max
8.5 mph
Cutting deck
Cutting deck type
Fabricated
Cutting methods
Collect/Mulch/Side discharge
Cutting deck material
Steel
Blade engagement
Electric clutch
Blade-tip speed
18500 fpm
Deck lifting system
Manual, foot assisted
Powder-coated cutting deck
Yes
Spindle/mandrel type
Aluminium, regular
Cutting height, min (approximate)
1.5 in
Cutting height, max (approximate)
4.5 in
Dimensions
Base machine, length
75.5 in
Base machine, height
42 in
Base machine, width (chute down)
76 in
Base machine, width (chute up)
62.3 in
Tire size, front Width
6.5 in
Tire size, front Diameter
13 in
Tire size, front Diameter wheel
6 in
Drive system
Transmission type
Hydrostatic
Transmission manufacturer
Hydro-Gear
Transmission model
ZT 3100
Engine
Motor/engine manufacturer
Kawasaki
Cylinder displacement
44.3 cu.inch
Engine lubrication type
Full pressure
Fuel tank volume (with reserve)
5 gal (US)
Fuel tank location
Side (Single)
Equipment
Hour meter type
Digital with pre-programmed service intervals
