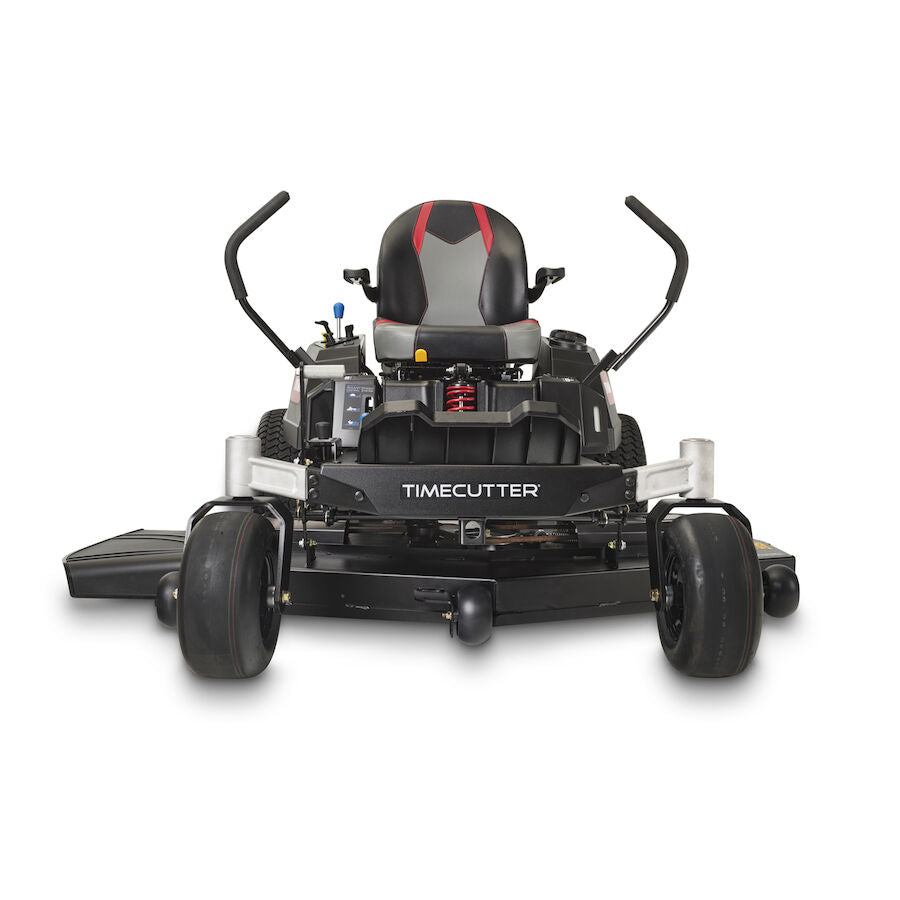

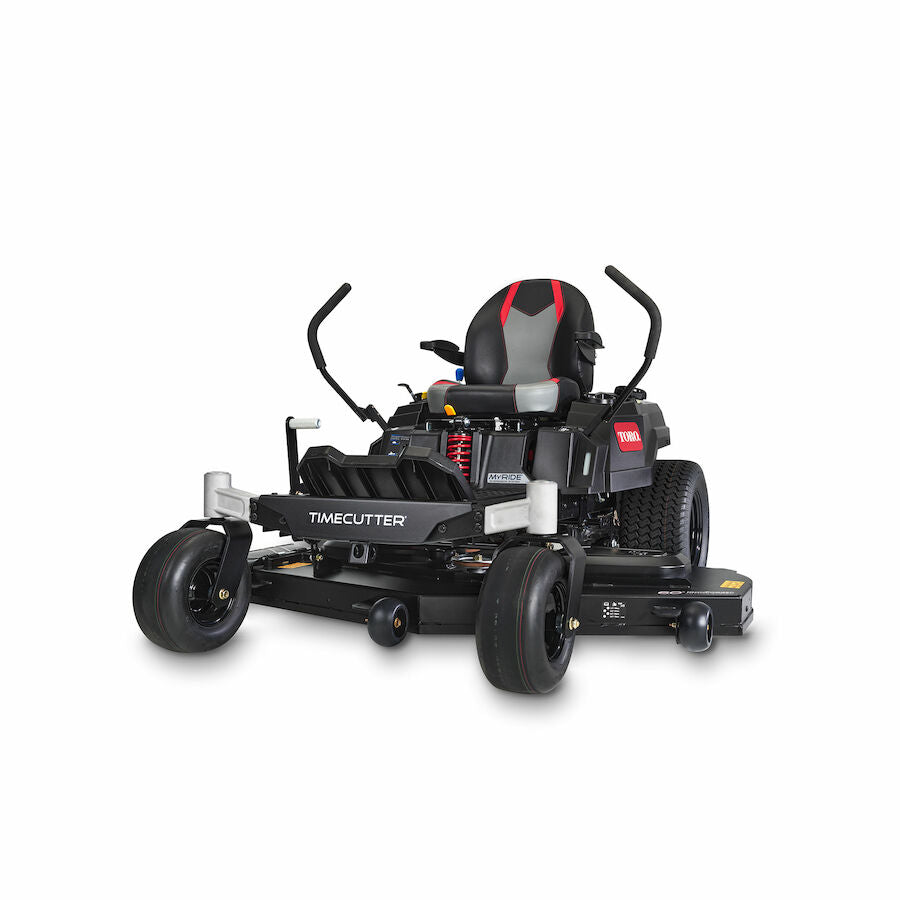

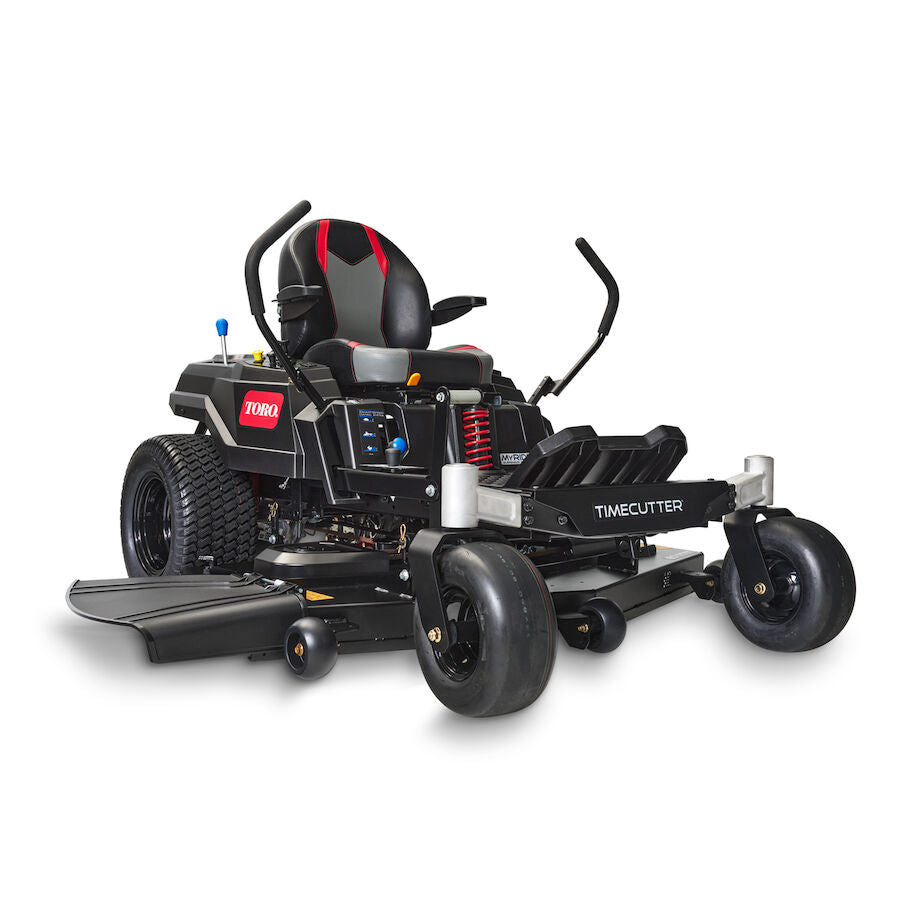

Toro 75763 TIMECUTTER Havoc Z-Turn Mower 24hp Kohler V-Twin w/60" Fabricated Deck with MYRIDE

TOROSKU: 75763

Sale price$5,699.00
Only 1 unit left


Toro 75763 TIMECUTTER Havoc Z-Turn Mower 24hp Kohler V-Twin w/60" Fabricated Deck with MYRIDE

Accessory Guide


Get ready to wreak some HAVOC. This beast of a machine is designed to send an immediate message to your property and your neighbors, that you are not to be trifled with. The Havoc Edition is the largest TimeCutter ever made with features like a 60 in. IronForged(TM) Deck, MyRide(R) Suspension system, and a 1-of-a-kind paint job. When you have the HAVOC anyone who sees you on this machine will know you're serious about mowing, and you will do it whenever you please.


  • Aggressive paint job that says you don't keep up with the Jones', you are the Jones'.
    Enjoy a more comfortable ride, saving your body from the toughest terrain.
    Toro IronForged® fabricated deck ensures years of reliability and top performance.
    Pro DNA - Commercial DNA courses through these machines' veins with the same technology professionals depend on.



Air Filter Low Profile Air Cleaner (LPAC)
Anti Scalp Wheels Standard
Armrests Standard
Bagger Capacity 4.9 bushels
Blades HI FLOW 20.5 in. Black
Brake System Electric Parking Brake - Internal
CARB Compliant Not CARB Compliant
Carrier Frame 3.3 in. x 1.75 in. x 10 gauge
Caster Tires 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
Clutch Electromagnetic
Comfort Platform MyRIDE® Suspension System
Controls Dual Wrap Around Levers
Cooling System Air Cooled
Crankshaft 1" (25 mm) w/Steel Protector
Cup Holder Standard
Cutting Width 60 in. / 152 cm
Deck Design 10 gauge Fabricated IronForged™
Deck Material 10 Gauge Steel
Discharge Chute Side
Drive System 5-Speed Transmission
Drive Tires 20 in. x 10 in. - 10 in. (50.8 cm x 25.4 cm - 25.4 cm)
Drive Type Rear-Wheel Drive
Engine 24 hp Kohler KT735
Engine Brand Kohler
Engine Displacement (cc) 725 cc
Engine Horsepower 24.0 hp
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph
Frame 3.3 in. x 1.75 in x 10 gauge
Fuel Capacity 3 gal. / 11.4 L / 12 Qt.
Fuel Type Gasoline
Greasable Bearings Yes
Height of Cut 1.0 - 4.25 in. / 2.5 - 10.8 cm
Hitch Bracket Standard
Hour Meter Standard Hour Meter
Hydraulic Fluid Synthetic
Number of Blades 3
Product Features Cup Holder, Deck Washout Port, Foot Operated Height of Cut, Hitch Bracket, Hour Meter
Product Use Residential
Recommended Oil Type 10W-30
Recycler Kit Kit available
Shocks 1 Front Center / 2 Rear
Spark Plug Type RFI Spark Plug
Spindle Bearings Maintenance-free
Start Type Electric, Key Start
Steering Controls Dual-Action Single-Bail
Transmission Dual Hydrostatic HG-ZT2800
Washout Port Standard

Accessory List (Not Included)
Model/Part # Description
139-3290 Recycler Mulch Kit
TIMECUTTER Non-Powered Bagger Fits 60" Fabricated Decks
2020 and Newer
