Description

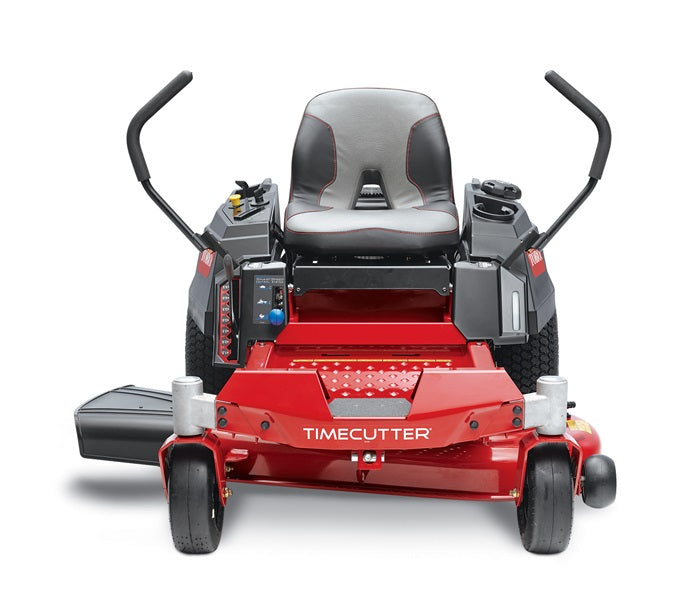

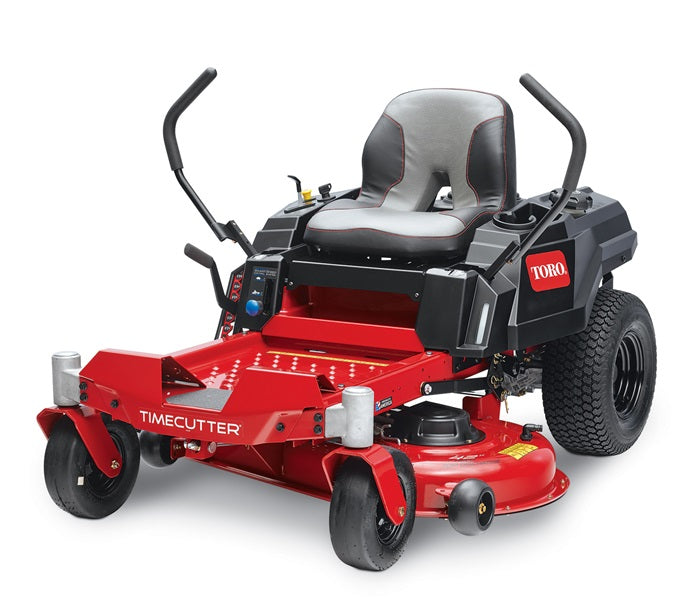

Toro 77401 TIMECUTTER Z-Turn Mower 22hp Briggs & Stratton V-Twin Engine w/42" Stamped Deck
Tackle everything on your "Honey-Do" list and still make it in time for all the summer fun with Toro's 42" TimeCutter. The mower's compact design makes for easy storage, and features like a step-through front end, built-in cupholder and storage cubby give you the ultimate in convenience. It's also a snap to control with Toro's Smart Speed® Technology, which adjusts to your pace for easy maneuverability. Pinpoint quality cuts and zero-turn mowing are just two pro commercial contractor features that put Toro's cutting-edge technology and world-class craftmanship into the hands of homeowners. And you can rest easy knowing Toro stands behind its mowers with a 3-year unlimited hour residential warranty, plus 3-year, 300-hour commercial engine warranty. And as a Toro owner, you'll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.
- Cup Holder - Stay cool and hydrated with a built-in cup holder.
- Wide Rear Tires - Wide tires to reduce rutting in soft ground.
- Pro DNA - Commercial DNA courses through these machines' veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.
- Step-Through Front End - Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
- Toolless Oil Change - Spend less time maintaining your mower with toolless oil change and filter.
- Handcrafted Seat - Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
- Storage Cubby - Now there's a convenient and safe space in your under-seat cubby to store important items.
- Pick Your Pace - Take control over your mowing speed, while never sacrificing blade tip speed with Smart Speed® Technology.
- Download the MyToro App from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more.
Specifications
Blade Tip Speed | 17,810 ft/min / 5,428 m/min |
---|---|
Box Dimensions | 82 in. x 49 in. x 35 in. / 208.3 cm x 124.5 cm x 88.9 cm |
CARB Compliant | Not CARB Compliant |
Caster Tires | 11 in. x 4 in. (27.9 cm x 10.2 cm) |
Controls | Dual Wrap Around Levers |
Cup Holder | Standard |
Cutting Width | 42 in. / 107 cm |
Deck Design | 42" Stamped Deck |
Deck Material | 13 Gauge Steel |
Discharge Chute | Side |
Drive Tires | 18 in. x 7.5 in. (45.7 cm x 19 cm) |
Drive Type | Rear-Wheel Drive |
Engine | 22 hp Briggs & Stratton |
Engine Brand | Briggs and Stratton |
Engine Horsepower | 22.0 hp |
Foot Operated Height of Cut | Optional |
Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
Fuel Capacity | 3 gal. / 11.4 L / 12 Qt. |
Fuel Type | Gasoline |
Height of Cut | 1.5 - 4.5 in. / 3.8 - 11.4 cm |
Hitch Bracket | Standard |
Hour Meter | Optional |
Included in the Box | 1 Battery, Engine Oil |
Number of Blades | 2 |
Product Features | Cup Holder, Electric Start, Foot Operated Height of Cut, Hitch Bracket, Low Back Seat, Smart Speed, Tool-less Oil Change |
Product Use | Residential |
Recommended Oil Type | 10W-30 |
Seat | 16" Handcrafted |
Start Type | Electric |
Steering Controls | Dual Wrap Around Levers |
Steering Dampeners | Pro-Control Dampers |
Terrain Type | Flat with Obstacles |
Tires | 11 in. x 4 in. (27.9 cm x 10.2 cm) Front, 18 in. x 7.5 in. (45.7 cm x 19 cm) Rear |
Tow Speed | Up to 4.0 mph / 6.4 kph |
Transmission | Dual Hydrostatic HG-ZT2100 |
Trim Speed | Up to 5.5 mph / 8.8 kph |
Washout Port | Standard |
Wheel Height | Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm |
Yard Size | Up to 2 acres |
Attachments and Accessories (Not Included) For 75748 TimeCutter 4225 Riding Mower |
|
Product Name | Model/Part |
Twin Bagger, Timecutter 42in Stamped | 79410 |
42in Recycler Kit | 137-7042 |
Bagging Enhancement Kit | 137-7048 |
Striping Kit, 42in and Riding Mowers | 140-5198 |
Hourmeter Kit | 116-5461 |
Front Weight Kit | 140-2050 |
Assist Bar Kit | 140-2052 |
ROPS Kit | 79485 |
Slope Sensor Kit | 79486 |
LED Light Kit | 140-2056 |
Deluxe Seat Kit | 140-2057 |
Armrest Kit | 140-2058 |
Deck Footlift Assist Kit | 140-2059 |
Floormat Kit | 140-2060 |
Jack Mount Kit | 140-2711 |
Jack Kit | 127-6666 |
Replacement Blade Kit | 137-1999-03P |
Storage Cover | 490-7516 |
Seat Cover W/O Arm Rest - TC 18in | 117-0096 |
4-Cycle Fuel, Snow And Lawn 32oz Can | 131-3823 |
Heavy Duty Air Cleaner Kit | 135-6195 |
Fuel Stabilizer 05 oz | 130-2393 |
Toro Premium Fuel Treatment 12 Oz Bottle | 131-6572 |
10w30 4-Cycle Engine Oil (32oz Bottle) | 38280 |
Toro 4-Cycle SAE 30 Oil (32oz Bottle) | 38903 |
Mower Deck Drive Belt, TimeCutter SS Riding Mower with 42-inch Mowing Deck |
