Toro Timecutter Max Havoc 23hp Kawasaki Engine 60" FAB Deck Z-Turn Mower w/ MYRIDE #77603

Save $600.00
TOROSKU: 77603

Price:
Sale price$4,999.00 Regular price$5,599.00
Stock:
Only 2 units left

Description

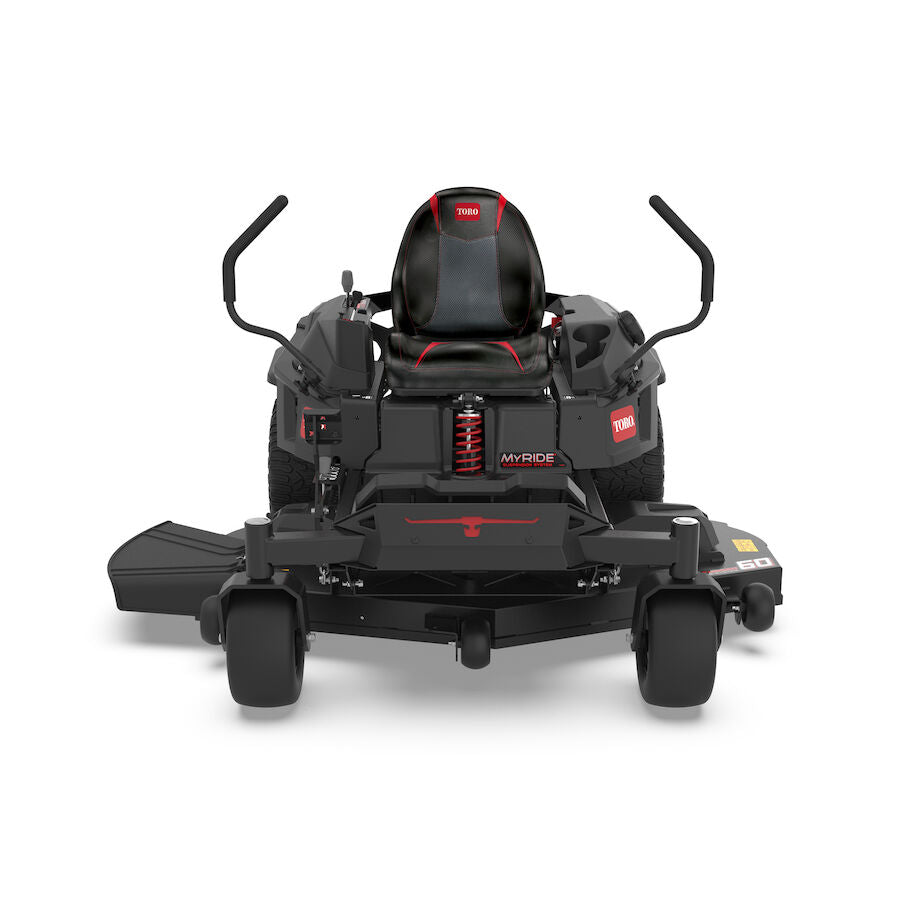

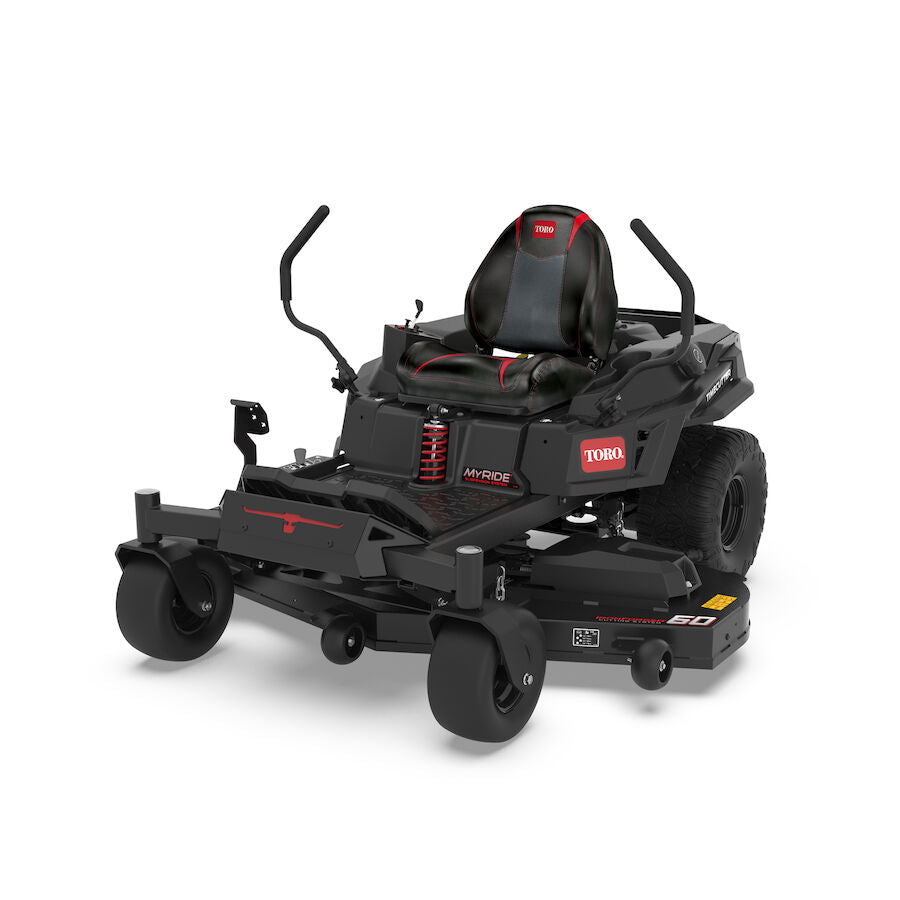

60 in. (152 cm) TimeCutter® Max Havoc MyRIDE® Zero Turn Mower

Featuring MyRIDE® Suspension System
  • Model: 77603
  • Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
  • Over 100 years of Pro DNA course through the veins of every mower we build.
  • Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
  • The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
  • Spray blocking fenders keep tire spray off your engine, and more importantly, you.
  • Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
  • The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
  • Aggressive paint job that says you don't keep up with the Jones', you are the Jones'.



Specifications

Air Filter Standard Kawasaki Air Cleaner
Anti Scalp Wheels 3 Standard
Armrests Optional (Not Included)
Bagger Capacity 79413 4.9 bushels (Not Included)
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Box Dimensions 82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires 13 in. x 6.5 in. - 6 in. (33 x 16.5 cm - 15.2 cm) Pneumatic
Clutch Electromagnetic
Comfort Platform MyRIDE® Suspension System
Cooling System Air Cooled
Crankshaft 1" (25 mm) w/Steel Protector
Cup Holder Standard
Cutter System Steel Cutting Blade
Deck Design 10-Gauge steel IrongForged®
Deck Material 10 Gauge Steel
Deck Size 60 in / 152 cm
Discharge Chute Side
Drive System Hydrostatic
Drive Tires 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
Drive Type Rear-Wheel Drive
Engine 23 hp Kawasaki FR691V 726cc
Engine Brand Kawasaki
Engine Displacement (cc) 726 cc
Engine Horsepower 23.0 hp
Engine Power (kW) 17.2 kW
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph
Forward Mowing Speed Up to 7.0 mph / 11.2 kph
Frame 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Greasable Bearings Yes
Height of Cut 1.0 - 5.0 in. / 2.5 - 12.7 cm
Hitch Bracket Standard
Hour Meter Standard
Hydraulic Drive Standard
Lighting Optional (Not Included)
Number of Blades 3
Product Type TimeCutter Max MyRide
Product Use Residential
Recommended Oil Type 10W-30
Roll-Over Protection (ROPS) Optional (Not Included)
Seat 19" Gaming Style
Spindle Bearings Maintenance-free
Spindle Housing Cast-Aluminum
Start Type Electric
Steering Controls Twin Lever
Steering Dampeners Standard Dampers
Terrain Type Flat with Obstacles
Tires 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
Transmission Dual Hydrostatic HG-ZT2800
Washout Port Standard
Weight 704 lbs / 319.3 kg

Disclaimer

*23 HP gross (726 cc) at 3,300 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for warranty details.
‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
